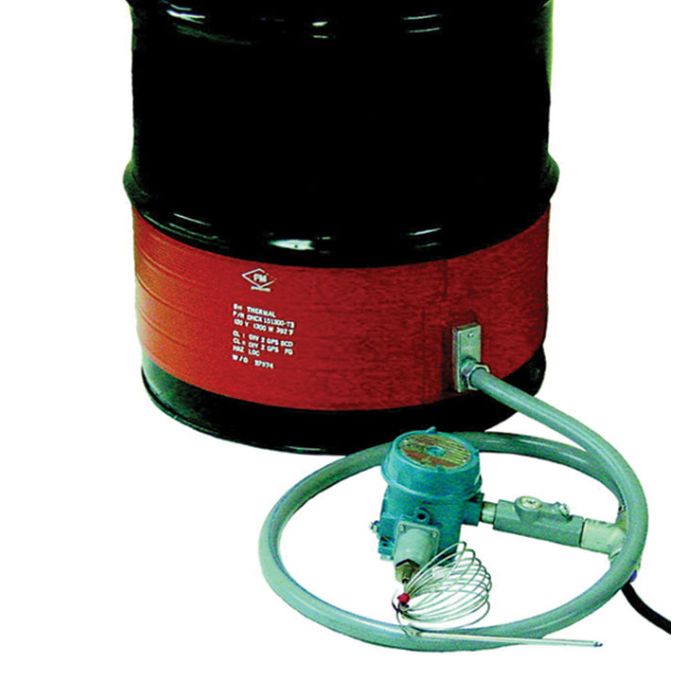

BriskHeat ® Hazardous Area Drum Heaters - T4A Rating Class I Division II

SKU
SRH55T-115-T4A
$2,406.95 / each
Print PDF
+
-
  • Fits: Steel Drum
  • Thermostat limit: 158° F
  • Volts: 120
  • Watts: 1300

This quality silicone rubber and fiberglass drum heater is moisture proof for a durable long life. Simple spring and hook fastener for easy installation and removal. Adjustable dual set-point temperature controller assembly has a 6 foot cord with a standard 120V NEMA 5-15 plug. One set-point is set at a high temperature limit and connected to a red indicator light.

High limit thermostats are built-in to keep temperatures below the "T4A" rating, the auto-ignition temperature of the flammable product (National Electrical Code Article 501).

Built-in thermostat shuts off once surface temperature reaches 158° F and turns on again once surface temperature falls 10° or to 148° F. External thermostat may be set lower and will override the built-in. If external thermostat is set too high the built-in overrides it.

120V plug is rated NEMA 5-15 for hazardous use and FM Approved. Plug must be used with an appropriate receptacle to maintain the Hazardous Class I Division II rating the entire unit.

More Information
Brand Briskheat Corporation
Type Adjustable Thermostat
Temp. Range High 148
Temp. Range Low 10
Volts 120V
Watts 1300W
Length 70"
Height 8"
Weight 10 lbs
Standards FM Approved
Drum Size 55 Gallon
