MORSE® Hydraulic Lift - Manual Tilt - 72 Inch Pour Ht

400A60
MORSE® Hydra-Lift Karrier - Manual Tilt - Hydraulic Lift

MORSE® Hydraulic Lift - Manual Tilt - 72 Inch Pour Ht

400A60

$2,045.20 Each
+
Add to wish list

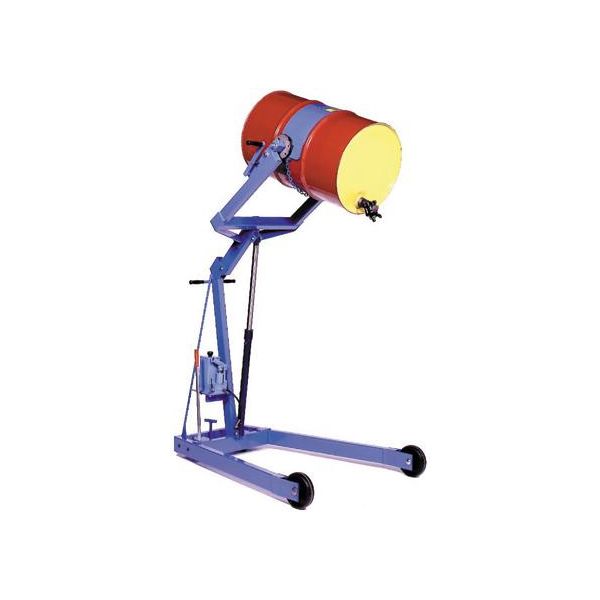

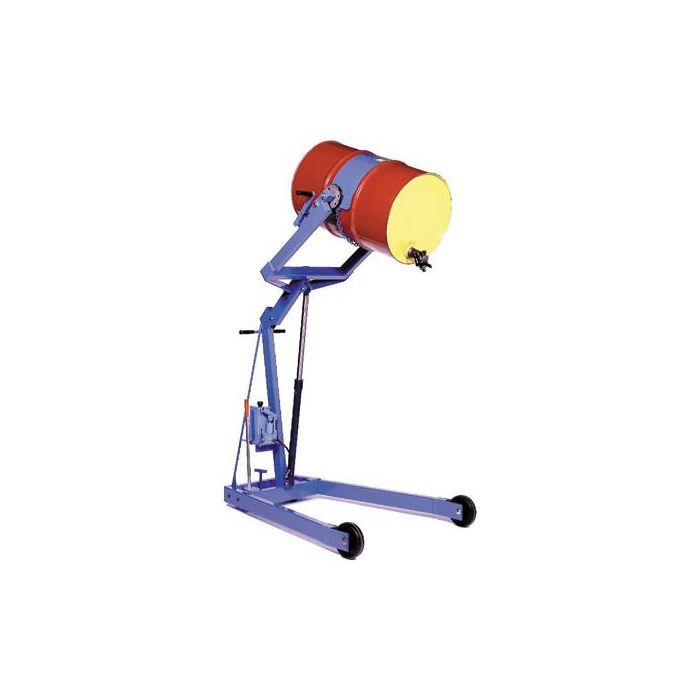

This MORSE® Hydra-Lift Karrier™ has a manual hydraulic hand pump drum lift and manual hand crank tilt. It allows one person to easily handle a fully loaded drum, up to 800 lb or half-full drums up to 500 lb. A half full drum will be unbalanced and bottom heavy so when you tilt it, the load shifts differently than if it were a full drum.

The MORCinch™ feature is designed to automatically adjust for 22 inch to 23 1/2 inch diameter steel drums and plastic or fiber drums with available diameter adapter options below. The manual tilting gear drive has a hand crank to control the degree of tilt. It allows the drum to be rotated 360° either direction, holding the drum at any angle desired.

All welded steel frame rolls easily on two, 8 inch polyolefin wheels and two, 4 inch swivel casters, which are hidden under the base. It can be screwed into the plant floor if necessary. The hand operated hydraulic pump gives full lift in about 45 strokes, which lifts the drum up. The maximum 72 inch lift height is measured from the floor to the lowest point of a horizontal 55 gallon steel drum.

Options Available include: Drum diameter adapters for handling smaller drums, Bracket assembly (SKU 4556-P) for plastic and fiber drums, or the Rim Clamp assembly (SKU 4560-P) for handling plastic drums, and the MORStop™ Tilt-Brake which automatically stops and holds the tilt angle of the drum.

  • Load, move, lift, tilt and drain full drums
  • Safe, one-person operation
  • Hand Crank Tilt
  • Dispensing Ht.: 72"
  • Capacity: 800 lb
  • Fits 55 gallon steel drums

Spark-resistant models are available through special order. Contact a BASCO Customer Service Expert for details.

Reach Ht.:
44"
Dispensing Ht.:
72"
Tilt:
Hand Crank
Wt.:
301 lb
Length:
60"
Height :
55"
