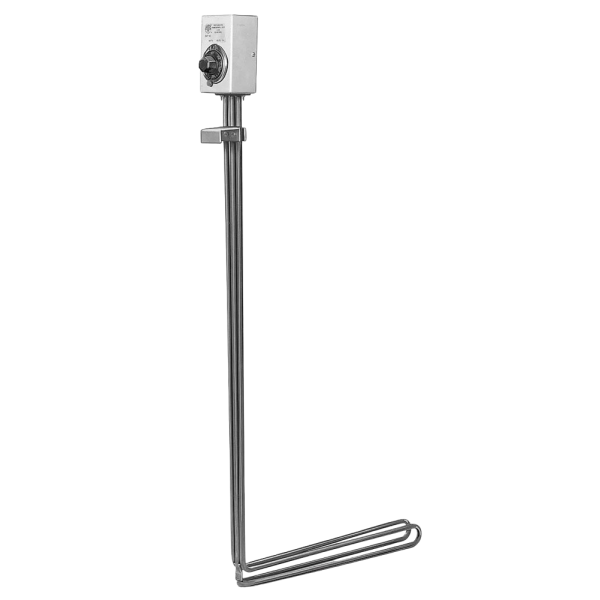

Steel Bung Entering Immersion Heater, 120V
Product Details
Improve Material Flow with Direct Immersion Heat
This immersion heater delivers heat directly into the product for efficient heating and improved flow of viscous liquids. Designed to fit through the 2-inch bung opening of steel 55 gallon drums, the heater features an 8-inch heated riser that allows liquid levels to fluctuate without damaging the heating element.
The adjustable mounting bracket positions the heater away from the drum wall and above sludge buildup at the bottom of the drum. A pilot light indicates when the heater is cycling on or off. The heater is single-phase and features a NEMA 1 control housing.
- Helps improve the flow of viscous liquids
- 60–250°F adjustable thermostat
- Over-temperature cutout for added protection
- Adjustable mounting bracket
- Single-phase with NEMA 1 control housing
Note: Cord and plug are not included. Consult local electrical codes for proper wiring requirements based on the environment where the heater will be used. Operating instructions and a wiring diagram are included with each heater.
More Information
| Brand | Tempco Electric Heater Corp |
|---|---|
| Type | Adjustable Thermostat |
| Temp. Range High | 250 |
| Temp. Range Low | 60 |
| Volts | 120V |
| Watts | 1000W |
| Length | 19" |
| Height | 36" |
| Item Weight (lbs) | 8 lbs |
| Standards | NEC Compliant, NFPA Compliant |
