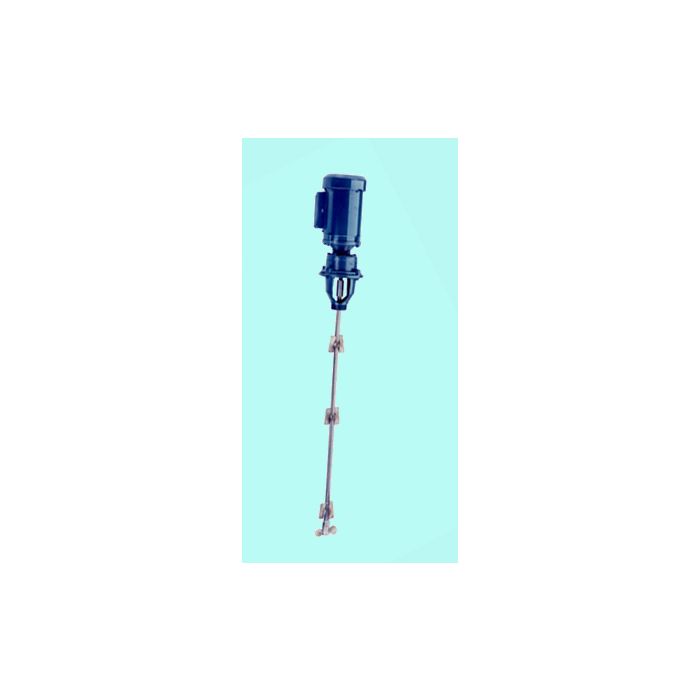

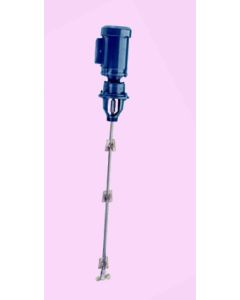

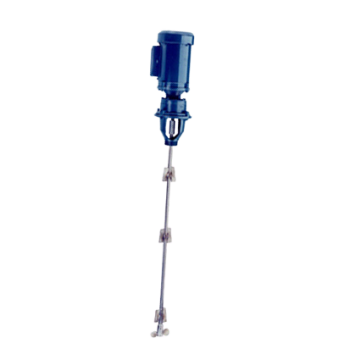

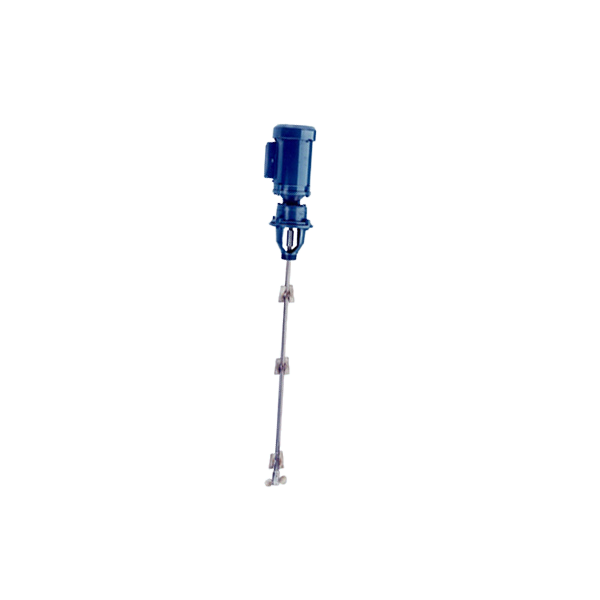

High Viscosity Gear Drive Closed Head Drum Mixers
Product Details
The special combination of propeller blades has three, 2 blade fixed props, and one 3 3/4 inch folding prop to provide thorough mixing of extremely viscous liquids. The 316 stainless steel shaft and triple propellers enter through and screw into the 2 inch NPS bung opening on 55 gallon steel drums.
The HGS series, gear drive mixer with 1/2 HP TEFC motor, handles viscosities up to 16,000 cP (centipoise).
Economical mixing of very high viscosity liquids.
- For extra heavy liquids in tight head drums
- Mixes viscous liquids up to 16,000 cP (centipoise)
- 1/2 HP TEFC Motor
- Gear drive
- 430 RPM
NOTE: No cord or plug supplied on electric motors. They must be wired according to local electrical codes and standards.
More Information
| Additional Info | Viscosity Charts and Conversion Tables |
|---|---|
| RPM | Stainless Steel |
| Item Weight (lbs) | 45 lbs |
| Color | Blue |
| Motor Description | 1/2 HP TEFC |
