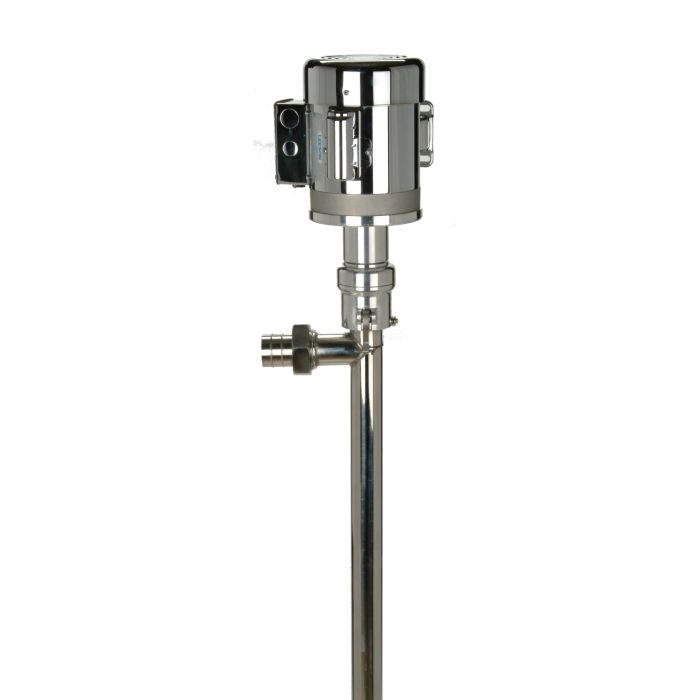

High Viscosity Electric Drum Pump

Progressive cavity or positive displacement style pumps can handle viscous fluids up to 100,000 centipose. This heavy duty pump features a unique camlock design for quick disassembly. The high viscosity, high head sealed pump tube is constructed of corrosion resistant, 316 stainless steel and Buna internals. This 40 inch long pump tube has a 2 inch diameter, 2 inch hose barb discharge, and 2 inch hose.

• Maximum specific gravity: 1.8
• Maximum temperature: 180°
• Minimum temperature: -20°

The Electric Motor has a maximum flow of 7 GPM, 300 ft maximum head, and the maximum viscosity is 100,000 cPs. The TEFC motor requires 115/60Hz, 0.75 output, and operates at 3450 rpm.

Available options include Viton and PTFE internals, air motors, and 27 inch or 48 inch long pump tubes. Call our Customer Service Experts at 1.800.776.3786 for details.
