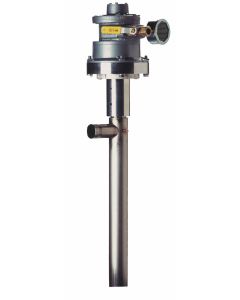

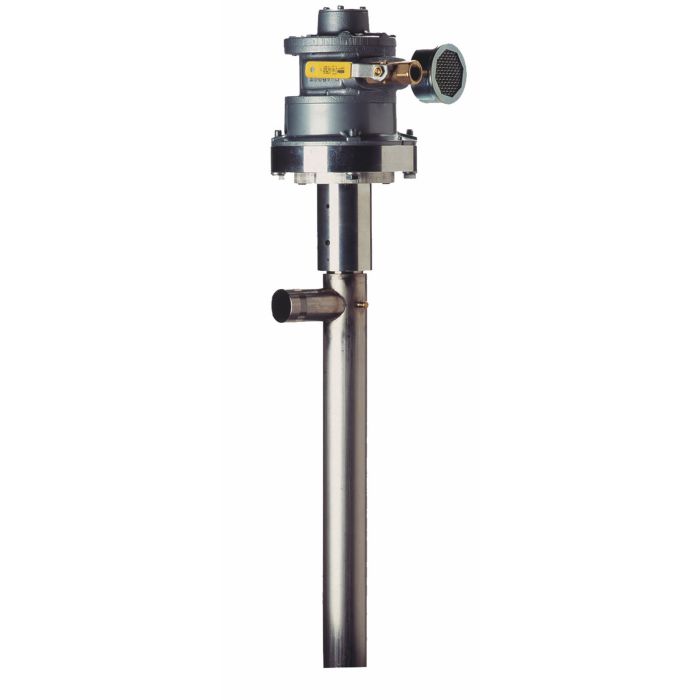

Finish Thompson High Viscosity Air Operated Pump - 200 ft Head
|
Secure Transaction |
Ships Direct from Supplier
This item ships directly from the manufacturer. Availability and shipping times may vary. Contact BASCO for current availability and estimated delivery.
Quantity Breaks:
| 1+ | 3+ | 6+ |
|---|---|---|
|
$4,541.15
each
|
$4,459.00
each
|
$4,295.70
each
|
Product Details
This high viscosity sealed design drum pump has PTFE screw type lifting compressor for liquids up to 7,000 cps. The lightweight air motor operates from a customer supplied compressed air source requiring 100 psi @ 120-170 cfm. The 3 HP air motor is variable speed and is supplied with muffler and control valve.
The 40 inch long pump tube with 2 inch diameter is constructed of 316 stainless steel with PTFE internal parts and 1 1/2 inch hose barb.
Note: A Static Protection Kit (SKU A100-836) is available and recommended as it increases safety when transferring flammable or combustible liquids. Kit includes cross-linked polyethylene grounded hose, ground wire and clamps.
More Information
| Additional Info | Viscosity Charts and Conversion Tables |
|---|---|
| Brand | Finish Thompson Inc. |
| Motor Description | Air 3 HP |
| Shaft | Stainless Steel |
| Max. Viscosity | 15,000 cps |
| Item Weight (lbs) | 53 lbs |
| Length | 40" |
