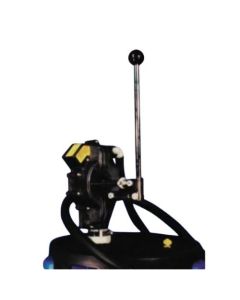

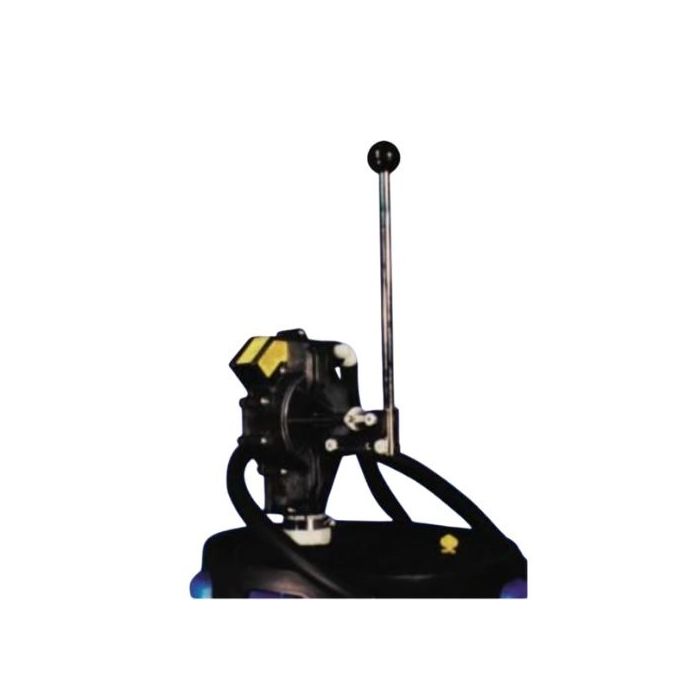

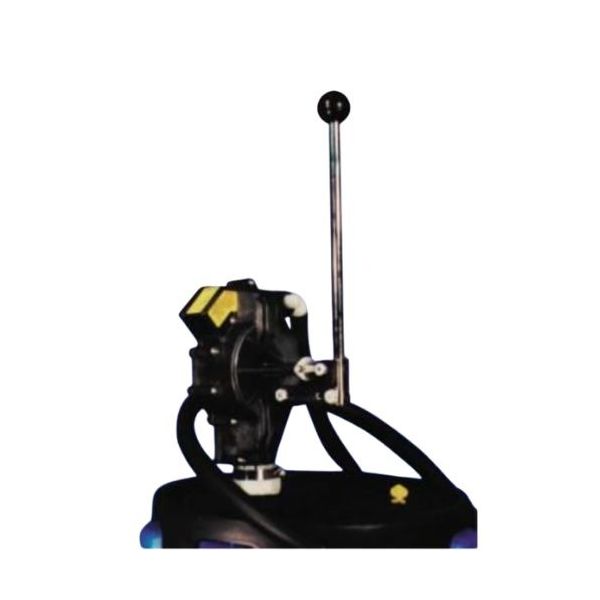

High Output Transfer Pump Viton® Gaskets

The high output transfer pump is a double-acting, self-priming piston pump which will handle a wide range of solutions with viscosities up to 350 cps, and delivers 1 quart on every complete forward and backward cycle. This polyester high output transfer pump with Viton® gaskets and Viton® O-ring rapidly transfer a variety of non-flammable chemicals. The pump body, valves, valve seats and piston are all made of chemically resistant polyester for strength and rigidity. All internal metal parts in contact with the liquid are made of 316 stainless steel.

• Fits 55 gallon drums
• Polyester with Viton® O-rings
• 1 qt per stroke
• Hose Length: 8' EPDM

Pump includes:

PTFE piston ring
1" NPT inlet with stainless steel inlet screen
3/4" NPT discharge
8' EPDM, w/polyester elbow & nozzle
Suction tube is 2 pc. 1" polyester, 34" long w/polyester coupling & TFE tape
2" NPS drum bung adapter
Padlockable handle (padlock not included)

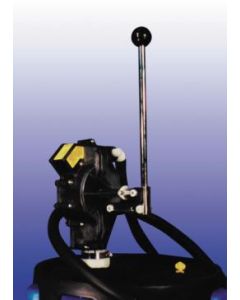

Optional discharge spout is available to replace the hose and nozzle..

Important: When ordering you must supply the MSDS sheet to confirm chemical compatibility.
