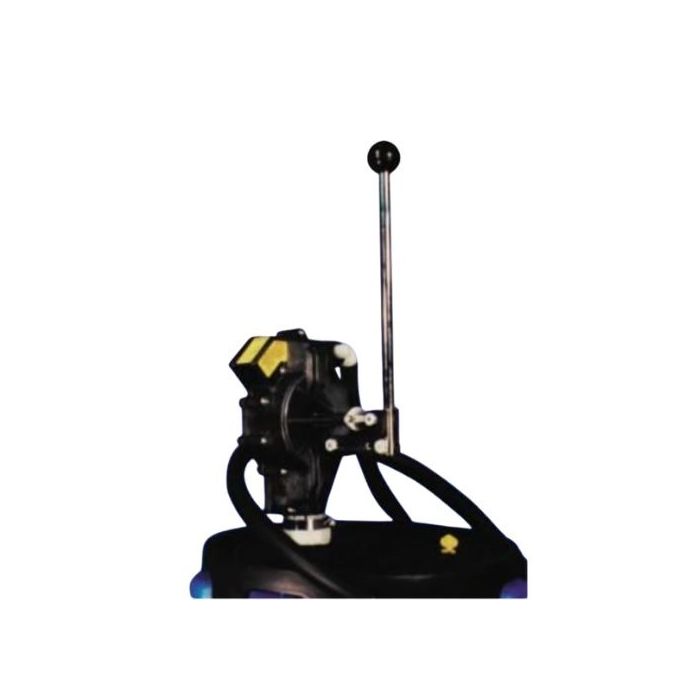

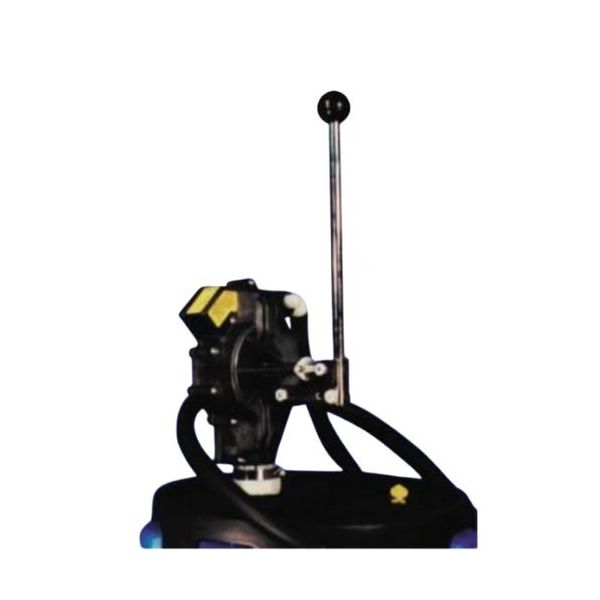

High Output Transfer Pump EPDM Gaskets

The high output transfer pump is a double-acting, self-priming piston pump which will handle a wide range of solutions with viscosities up to 350 cps, and delivers 1 quart on every complete forward and backward cycle. This Ryton® high output transfer pump with EPDM gaskets and EPDM O-ring rapidly transfer a variety of non-flammable chemicals. The pump body, valves, valve seats and piston are all made of chemically resistant Ryton® for strength and rigidity. All internal metal parts in contact with the liquid are made of 316 stainless steel.

• Fits 55 gallon drums
• Ryton® body with EPDM O-rings
• 1 qt per stroke
• Hose Length: 8' EPDM

Pump includes:

• 1" NPT inlet with stainless steel inlet screen
• 3/4" NPT discharge
• 8' EPDM discharge hose with Halar elbow and nozzle
• 2" NPS drum bung adapter
• Padlockable handle (padlock not included)
• Suction tube is 2 pc. 1" UHMW polyethylene, 34" long w/Halar coupling

Important: When ordering you must supply the MSDS sheet to confirm chemical compatibility.
