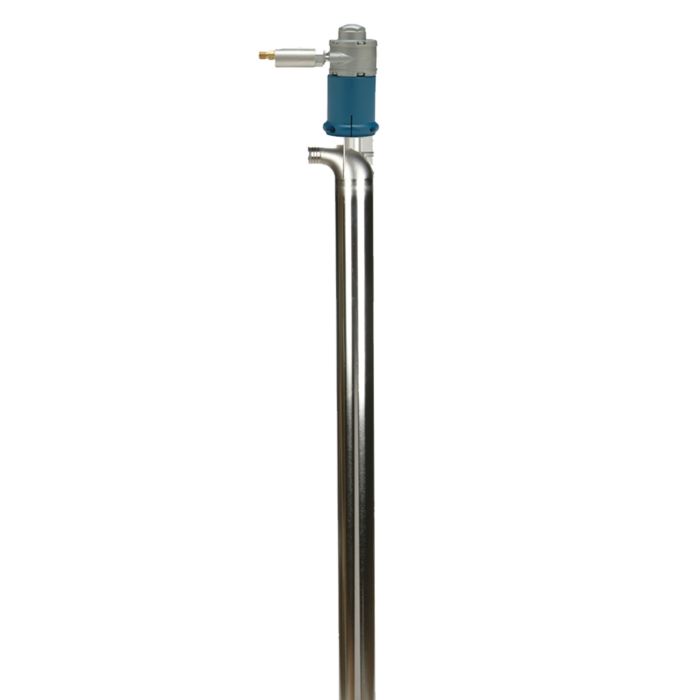

Finish Thompson Chemical Pump - Air Motor - 316 SS Pump Tube
|
Secure Transaction |
Ships Direct from Supplier
This item ships directly from our supplier. Availability and shipping times may vary. Contact BASCO for current availability and estimated delivery.
Quantity Breaks:
| 1+ | 3+ | 6+ |
|---|---|---|
|
$1,377.30
each
|
$1,341.10
each
|
$1,323.65
each
|
Product Details
This Air Motor operates with 17 – 25 CFM @ 50 – 80 PSI with 1/2 HP. Supplied with regulator valve and muffler. Designed for free flowing liquids up to 330 cps viscosity and 1.8 specific gravity. The 40 inch long stainless pump tube and shaft with 2 inch diameter fits 2 inch bung openings.
Seal-less design has 30 minute run-dry capability without damage. Features double suction impeller and 1 inch hose barb.
- Motor: Air 1/2 HP
- Pump Tube: 316 Stainless steel
- Internals: Stainless/PTFE/ETFE
- Max. Flow: 22 GPM
- Max. Temp.: 220°F
- Max. Viscosity: 330 cps
Caution: When pumping flammables, use only stainless steel pump tube and explosion proof motor. Hose and grounding kit are also required.
Note: A static protection kit with 1 inch hose barb (SKU A101-835) or with 1 inch male NPT (SKU A101-521) is recommended to increase safety when transferring flammable or combustible liquids with an explosion proof or air motor with stainless steel pump tube. The static protection kit includes cross-linked, polyethylene grounded hose, ground wire and clamps.
More Information
| Brand | Finish Thompson Inc. |
|---|---|
| Motor Description | Air 1/2 HP |
| Shaft | Stainless Steel |
| Max. Viscosity | 330 cps |
| Item Weight (lbs) | 16 lbs |
| Length | 40" |
