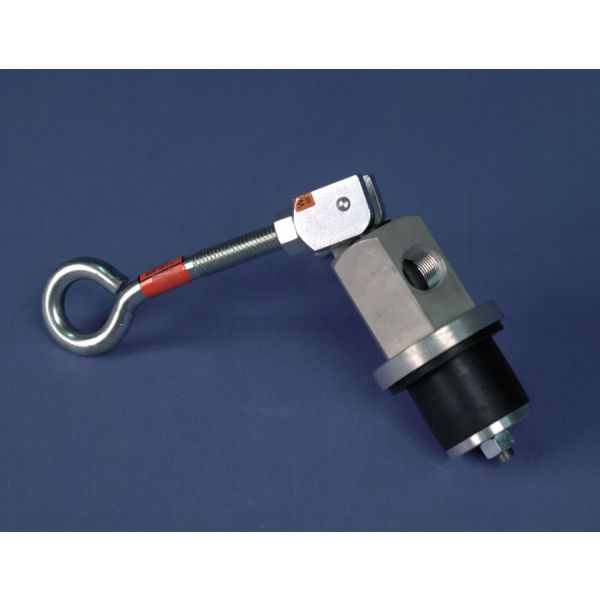

Seal Pressure Test Plug for 2 Inch bung

SKU
2083
$1,785.55 / each
Print PDF
+
-
  • Bung Opening: 2"
  • Inlet: 1/2" NPT
  • Aluminum body with plated steel cam handle

Effectively seal drums up to 100 psi and pressure test drums before re-use with this easy-to-use seal pressure test plug and its replaceable soft neoprene seal that expands against the bung threads.

  • Just insert into a 2 inch bung opening and pull cam handle down*
  • For 2" NPS bungs with a 1/2" NPT bung inlet
  • Aluminum body with plated steel cam handle

*Important Note: Drum Plug Connectors are used for testing large industrial drums and other shallow openings. Insert the connector straight into a pipe tapped opening. Push the seal flange face against the face of the opening, then actuate the cam handle 90° to the locked position, affecting a positive seal. The black seal should fit snuggly into the opening to the point where it cannot be pulled out. Adjust the tension of the seal by turning the handle clockwise. Do not over tighten, the sealing is created by the flange of the seal being drawn against the outer face of the opening. Maximum pressure for a standard pipe tapped opening is 100 PSI (6.8 BAR) and 50 psi. For a smooth bore.

More Information
Color Silver
