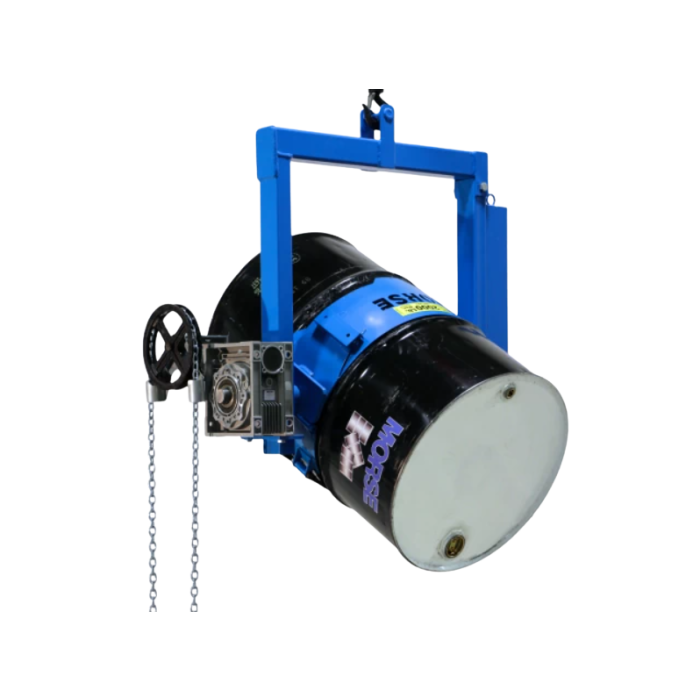

MORSE® Extra Heavy Duty Drum Handler

Extra Heavy-Duty Below-Hook Drum Handler

Lift, rotate, and pour heavy drums with confidence using this extra heavy-duty below-hook drum karrier. Designed for use with a crane or hoist, it provides controlled 360° drum rotation while securely holding the drum during overhead handling and dispensing.

• 2,000 lb full drum capacity and 1,000 lb half drum capacity for demanding lifting applications
• Two heavy-duty web straps with ratchet tensioners securely hold 55 gallon, 22-1/2" diameter steel drums
• Pull chain tilt with a 150:1 worm gear reducer rotates the drum 360° in either direction for precise pouring control
• Allows drums to be lifted, inverted, and dispensed with a drum faucet installed
• Individually factory load tested to 125% of rated capacity and ships with a load test certificate in compliance with ANSI/ASME B30.20 standards

Note: Optional diameter adapters are available for smaller drums.
