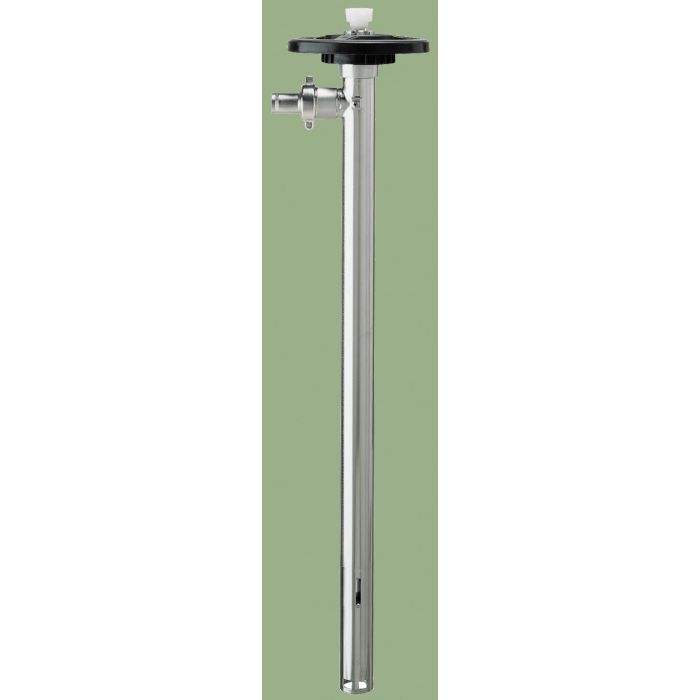

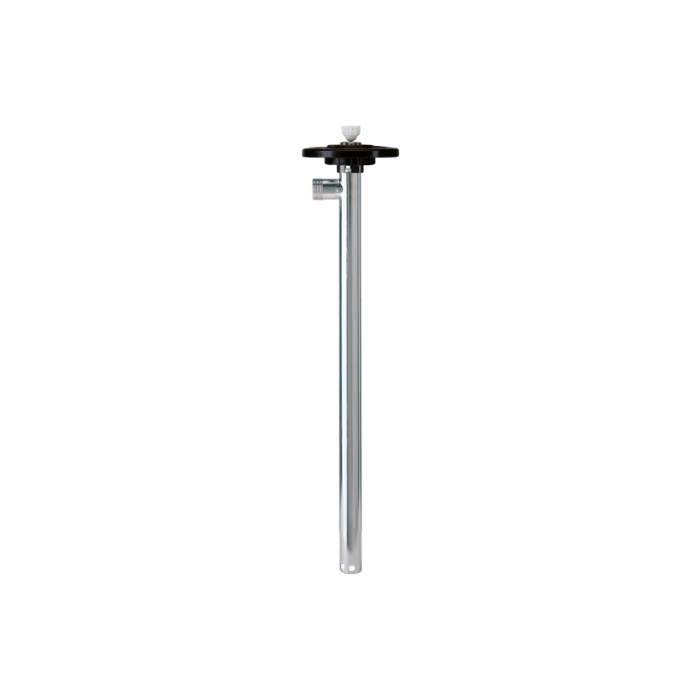

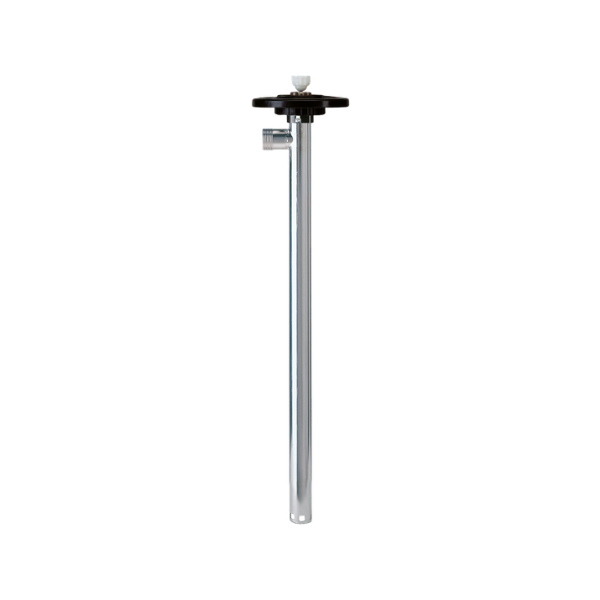

Lutz® Pump Tube 39 Inch Stainless Steel

The Lutz stainless steel pump tube for flammable and aggressive liquids is suitable for pumping clean and dirty, thin-bodied and slightly viscous, aggressive and non-aggressive liquids, flammable and non-flammable liquids out of containers.

This Lutz sealless design pump tube (the drive shaft of this pump tube is not sealed) has a bearing housing insert above the impeller, designed to prevent pumped liquid from rising between the shaft and the inner tube. This insert guides the liquid which penetrates between the drive shaft and the shaft bearing back into the container being drained.

The stainless steel pump tube has a standard length of 39 inches for 55 gallon drums or smaller. The stainless steel pump tube has an ETFE axial-flow rotor impeller for a low delivery rate and high delivery head. The bearings are carbon steel and has a stainless steel drive shaft.

The GPM, delivery head, viscosity, and specific gravity depends on the motor selected with this sealless designed stainless steel pump tube.

Note: Pump tubes are available for higher pressures and viscosity with high head impellers. Call our Customer Service Experts at 1.800.776.3786 for details.
