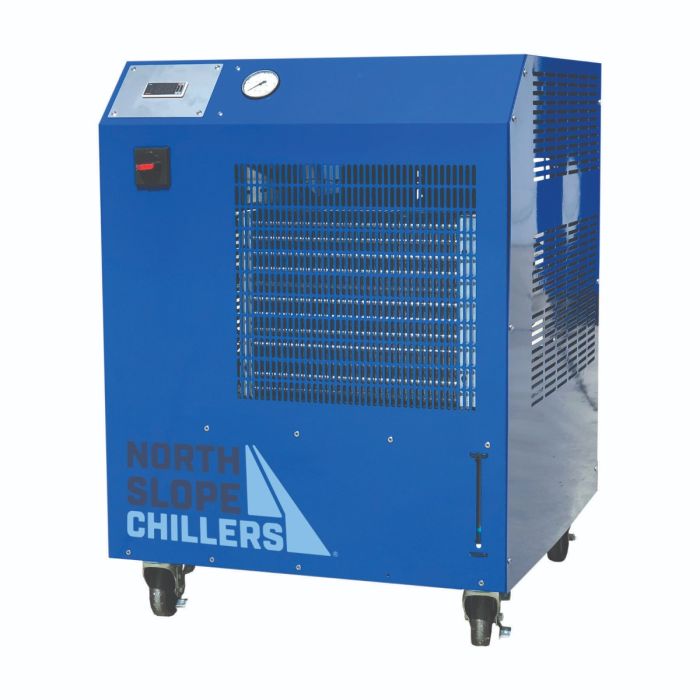

Industrial Air Chiller, 1/2 Ton HP - 28.25" x 22.5" x 32.5"

Freeze 1/2 Ton Industrial Air Chiller: No Need for a Shaft Seal, No Refrigerant Drippage.

Designed by a team of world-class engineers and American made from Powerblanket, this powder-coated steel Freeze industrial air chiller, 1/2 ton horsepower (HP), 28.25" x 22.5" x 32.5", spells one thing: quality.* This process chiller is the perfect solution to any standard process cooling system thanks to 1/2 ton horsepower, a 3,800 BTU/hr cooling capacity at 40°F, 6,000 BTU/hr cooling capacity at 65°F, and the ability to cool a product with its wide fluid temperature range of 40°F to 75°F.

• A standard air cooled chiller with ½” NPT for a leak-tight seal
• Chiller best designed to be used in an indoor environment with a temp range of 40°F up to a max 100°F
• Copeland ™ hermetically sealed compressor eliminates refrigerant leakage: Motor and compressor are directly coupled on the same shaft with the motor inside the refrigeration circuit to forgo a shaft seal
• Continuous duty, non-ferrous pump that won’t spark and ignite: 1/3 HP Fixed Displacement Pump, 4 GPM Fixed 50 PSI Max
• Reservoir Capacity: 4 gallon poly tank
• Chiller units with non-ferrous, non sparking piping system for safety in hazardous areas
• Portable chiller with 0-100 PSI discharge pressure gauge and 110/1/60 standard voltage (Other option: 208-240/1/60)

*A superior corrosion resistant stainless steel cabinet variety is also available.

Environmentally acceptable R134a refrigerant: Replaces chlorofluorocarbon (CFC) refrigerants that contain chlorine, which damages the ozone layer.
