EXPO ™ Electric Drum Heater, Thermostat Control, 55 Gallon Steel Drums

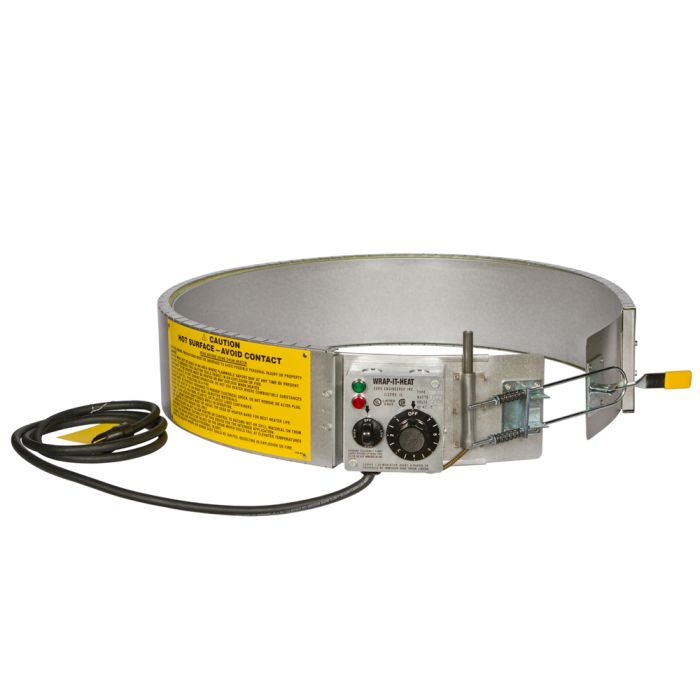

EXPO™ Electric Drum Heater, with thermostat control and three-heat switch, are designed for use on 55 gallon all metal drums containing materials with good heat receptivity. This unit has a thermostat range of 60° – 250° F and 240V operating rating.
The thermostat control is numbered 1-7. The three-heat switch allows for three wattage ranges per thermostat setting, the high setting is for the maximum watts (3000), the medium setting is for half the wattage (1500) and the low is for 750 watts.
Electric drum heater installs easily with a spring-loaded toggle clamp, for a snug fit around the steel drum. This heater has a NEMA 6-15P Plug. This heater is for indoor use only.
The heater is equipped with neon pilot lights. The green pilot light will glow as long as the heater is plugged in. The red pilot light will glow until the heater reaches the set temperature and will go on and off as the thermostat cycles.
- UL Listed
- CSA Certified
- One year warranty
This heater is for use with steel drums and drums that do not contain a removable plastic liner.
Electric Drum Heater is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a NON-HAZARDOUS area.
Caution: Allowing liquid in a container to fall below the level of the heater will render the heater ineffective and could irreparably damage the baked on epoxy phenolic lining in lined steel drums and pails.
|Temp. Range High||250|
|Temp. Range Low||60|
|Standards||CSA Certified, UL Listed|
