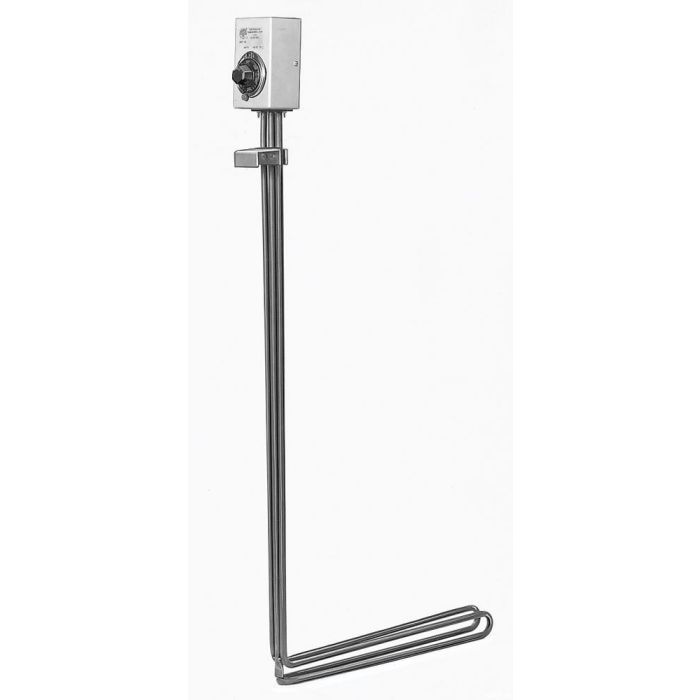

Bung Entering Immersion Heater - 240V Steel Sheath
Product Details
Steel Immersion heater puts the heat right into the products for the most efficient heating. Only 8 inch of riser is heated, allowing liquid level to fluctuate without damaging the heater. Heater fits through 2 inch bung opening in steel 55 gallon drums.
The adjustable mounting bracket positions the heater away from the drum wall and above sludge buildup at the bottom of the drum. Pilot light indicates whether heater is cycled on or off. All heaters are single-phase and have NEMA 1 control housings.
- Improve flow of viscous liquids
- 60 - 250° F thermostat with over-temperature cutout
Note: No cord or plug is provided - consult your local electric code for the proper wiring techniques for the environment in which the heater will be used. Operating instructions and a wiring diagram are included with each heater.
More Information
| Brand | Tempco Electric Heater Corp |
|---|---|
| Type | Adjustable Thermostat |
| Temp. Range High | 250 |
| Temp. Range Low | 60 |
| Volts | 240V |
| Watts | 4000W |
| Length | 19" |
| Height | 36" |
| Item Weight (lbs) | 8 lbs |
| Standards | NEC Compliant, NFPA Compliant |
