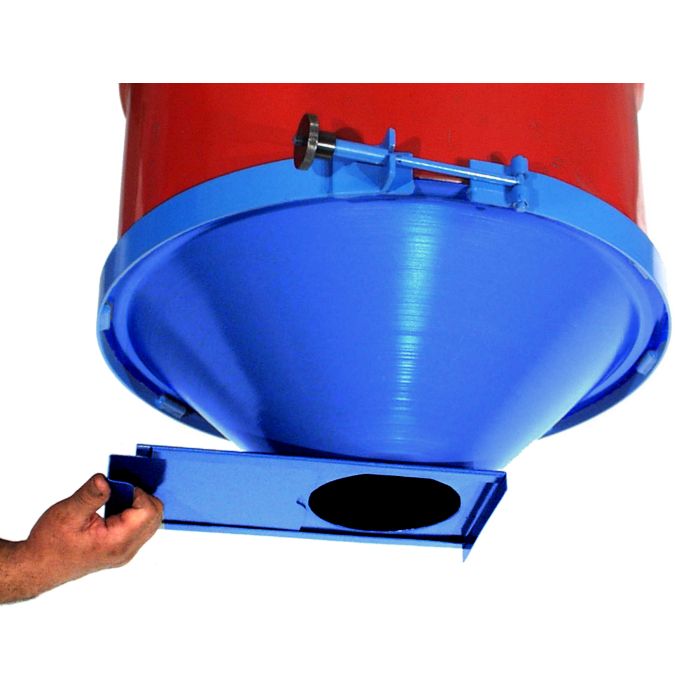

MORSE® Steel Cone Top - Steel Slide Gate Valve
SKU
55SDCSG
- Fits 55 gallon steel drum 23 3/8" diameter
- Cone/Valve: Steel/Steel
- 45° Taper Angle
- For dry material dumping
Replace your open head 55 gallon steel drum cover with a MORSE® Drum Cone when dumping dry material. Use with a MORSE® Forklift Karrier or Hydra-Lift Karrier and you're ready to go.
The cone is supplied with a locking clamp collar and neoprene gasket that seals the cone to the drum rim (23 3/8 inch diameter).
The steel slide gate valve is recommended for powdered material but not for coarse granular material. The valve has a 6 inch diameter discharge opening. Installed cone extends pour reach by 15 1/2 inches.
- Fits 55 gallon steel drum 23 3/8 inch diameter
- Steel Cone and Valve
- 45° Taper Angle
- For dry material dumping
Fits Drum | 55 gallon steel |
---|---|
Taper Angle | 45 degree |
Valve | Gate |
Wt. | 50 lb |
Diameter | 24" |
Cone/Valve | Steel/Steel |
Pricing Unit | Each |
Drum Size | 55 Gallon |
Drums Transported | Steel Drums |
