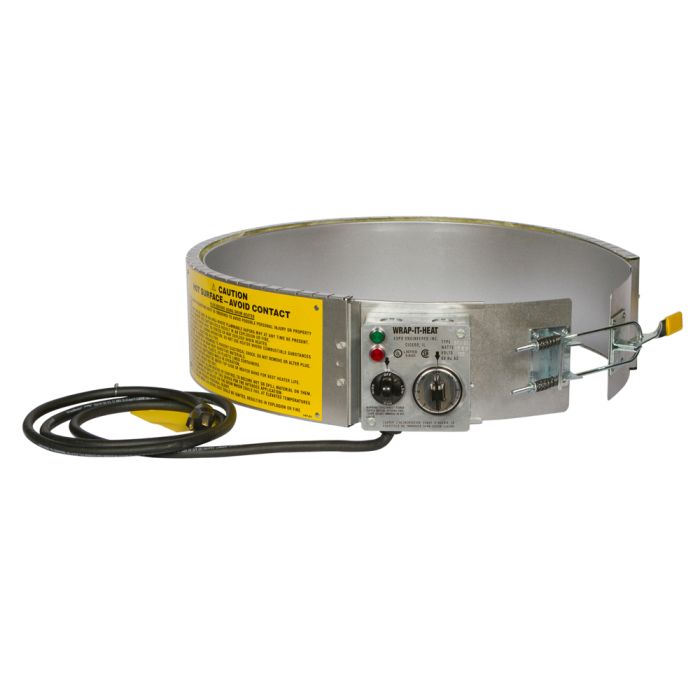

EXPO ™ Electric Drum Heater - Infinite (Variable) Control - For 30 Gallon Steel Drums

SKU
SRX30-115
$352.85 / each
Print PDF
+
-
  • Volts: 120
  • NEMA Plug: 5-20P

This heater with Infinite (Pulsating) Control and three-heat switch is designed for use on 30 gallon steel drums with materials that are subject to charring, burning or separation, such as food, chocolate, honey, light oils, and undercoating materials.

These heaters do not have a thermostat and will not automatically reach and hold a given temperature.

The function of the infinite control is to cycle a current on and off into your material. This provides a gentle warming action to the material that is being heated. Infinite control operates within each of three wattage ranges for closer heat control.

Heater installs easily with spring-loaded toggle clamp. Rugged aluminized steel construction with internal fiberglass insulation.

Heater is equipped with a neon pilot light and 6 foot power cord. The heater has a NEMA 5-20P plug

UL-Listed and CSA certified. Warranted for one year.

SRX heaters are for use with steel drums and drums that do not contain a removable plastic liner.

For indoor use only. Units are not moisture-proof nor explosion-proof. Not for use with flammables or near a flammable area.

Caution: Allowing liquid in a container to fall below the level of the heater will render the heater ineffective and could irreparably damage the baked on epoxy phenolic lining in lined steel drums.

More Information
Location Monee, IL
Brand Expo Engineered Inc
Type Adjustable Thermostat
Fits Drums
Temp. Range High 500
Temp. Range Low 10
Volts 120V
Watts 1750W
Length 18 1/2"
Height 5 1/4"
Weight 12 lbs
Standards CSA Certified, UL Listed
Drum Size 30 Gallon
