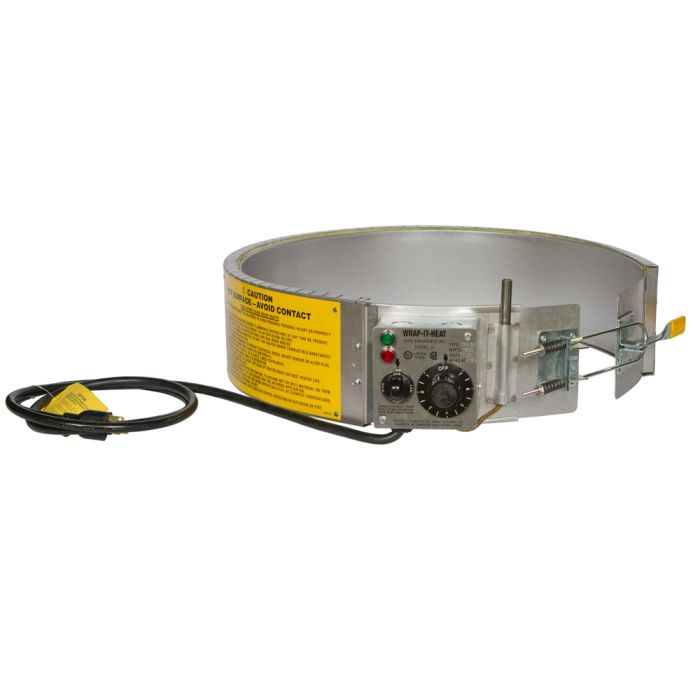

Electric Drum Heater - Thermostat Control - For 30 Gallon Steel Drums

SKU
TRX30H115
$346.60 / each
Print PDF
+
-
  • Temp. Range: 200° - 400° F
  • Volts: 120
  • NEMA Plug: 5-20P

Electric Drum Heaters, with thermostat control and three-heat switch, are designed for use on 30 gallon all metal drums containing materials with good heat receptivity. This unit has a thermostat range of 200° – 400° F and standard 120V rating.

The thermostat control is numbered 1-7. The three-heat switch allows for three wattage ranges per thermostat setting, the high setting is for the maximum watts (1920), the medium setting is for half the wattage (960) and the low setting is for 480 watts.

Electric drum heater installs easily with a spring-loaded toggle clamp, for a snug fit around the steel drum. This heater has a NEMA 5-20P Plug. This heater is for indoor use only.

Heater is equipped with neon pilot lights. The green pilot light will glow as long as the heater is plugged in. The red pilot light will glow until the heater reaches the set temperature and will go on and off as the thermostat cycles.

  • UL Listed
  • CSA Certified
  • One year warranty

This heater is for use with steel drums that do not contain a removable plastic liner.

Not for use with flammables or combustible materials or in a hazardous area.

Caution: Allowing liquid in a container to fall below the level of the heater will render the heater ineffective and could irreparably damage the baked on epoxy phenolic lining in lined steel drums.

More Information
Brand Expo Engineered Inc
Type Adjustable Thermostat
Temp. Range High 400
Temp. Range Low 200
Volts 120V
Watts 1920W
Length 18 1/2"
Height 5 3/8"
Weight 12 lbs
Standards CSA Certified, UL Listed
Drum Size 30 Gallon
