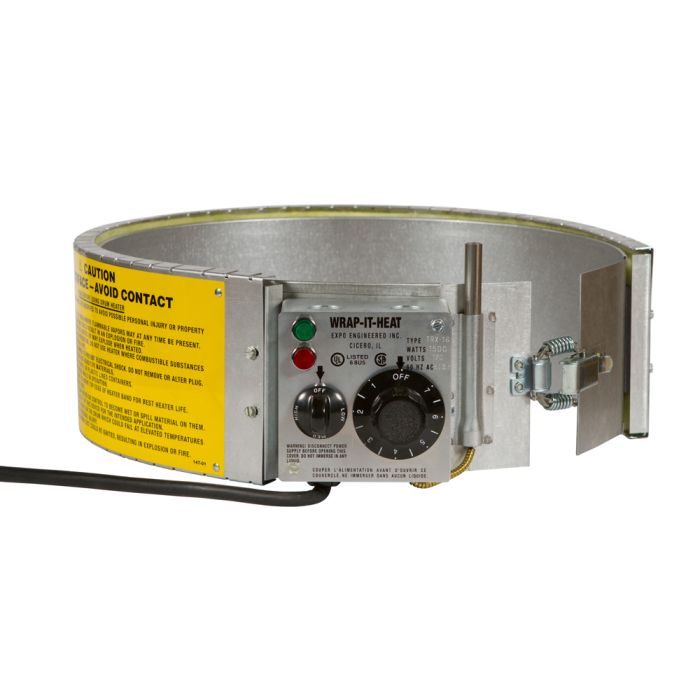

Electric Drum Heater - Thermostat Control - For 16 Gallon Steel Drums

SKU
TRX16H115
$338.05 / each
Print PDF
+
-
  • Temp. Range: 200° - 400° F
  • Volts: 120
  • Standard three prong plug

Electric Drum Heaters, with thermostat control and three-heat switch, are designed for use on 16 gallon all metal drums containing materials with good heat receptivity.

This unit has a thermostat range of 200° – 400° F and standard 120V rating.

The thermostat control is numbered 1-7. The three-heat switch allows for three wattage ranges per thermostat setting, the high setting is for maximum watts (1500), the medium setting is for half the wattage (750), and the low setting is for a quarter of the wattage (375).

Electric drum heater installs easily a with spring-loaded toggle clamp for a snug fit around the steel drum. A 6 foot power cord with a standard three pin plug is attached. The heater is for indoor use only.

The heater is equipped with neon pilot lights. The green pilot light will glow as long as the heater is plugged in. The red pilot light will glow until the heater reaches the set temperature and will go on and off as the thermostat cycles.

  • UL Listed
  • CSA Certified
  • One year warranty

This heater is for use with steel drums that do not contain a removable plastic liner.

Not for use with flammable or combustible materials or in a hazardous area.

Caution: Allowing liquid in a container to fall below the level of the heater will render the heater ineffective and could irreparably damage the baked on epoxy phenolic lining in lined steel drums and pails.

More Information
Brand Expo Engineered Inc
Type Adjustable Thermostat
Fits Drums
Temp. Range High 400
Temp. Range Low 200
Volts 120V
Watts 1500W
Length 14 1/2"
Height 5 3/8"
Weight 10 lbs
Standards CSA Certified, UL Listed
Drum Size 16 Gallon
