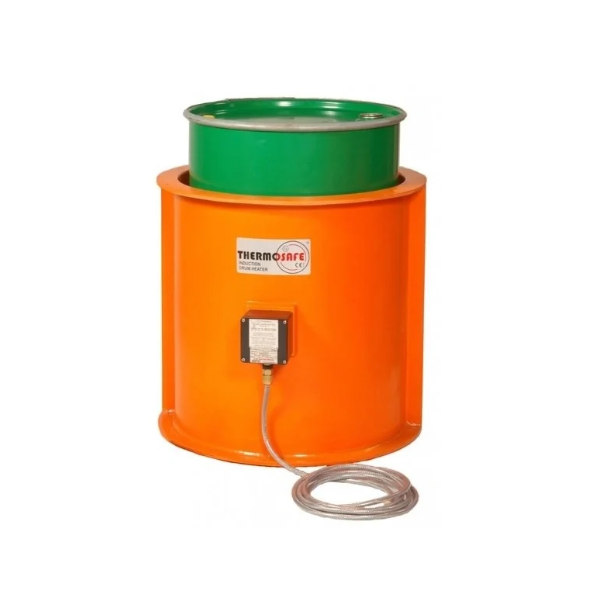

Thermosafe® Type A Induction Drum Heater

The Thermosafe® Induction Heater is a super efficient drum heater that does not make contact with the drum and provides fast uniform heating. Simply place the heater over the 55 gallon or smaller steel container. Also, you can lower the container down into the heater. This induction heater uses a single coil within a cylinder wall made from a glass reinforced resin that generates heat uniformly around the container wall. Since there are no hot elements, the heater remains cooler than the drum that is being heated and heating time depends on the specific contents within the drum. The rate of temperature rise of a typical viscous organic material will be about 59°F per hour. This Thermosafe® Type A heater runs on a single phase 240V, 50Hz AC power, direct wire.

Thermosafe® can be used in Hazardous Zones 1 and 2 and is IECEx, ATEX and ETL certified.

• Fast melting of solids and heating of liquids
• Allows mixing and dispensing while heating
• Easy to clean and can be hosed down while in operation
• Corrosion proof and maintenance free
• For use with 55 gallon or smaller steel containers
• Temperature Range: 32° - 250°F
• Volts: 240
• Safe for use in explosive areas

There are several optional add-ons to this heater:

• Powerlink Energy Regulator (SKU #BF400): used when slower heating rates are required.
• Rigid Hat (SKU #RTH): Steel cap used to keep heat from escaping
• Soft Hat (SKU #STH): Flexible poly cap used to keep heat from escaping

Note: IECEx and ATEX are European directives that describe what equipment and worked allows in an environment with an explosive atmosphere.
