MORSE® Air Power Lift - Manual Tilt - Hydra Lift Karrier

400A60-124
MORSE® Hydra Lift Karrier™ - Manual Tilt - Air Lift

MORSE® Air Power Lift - Manual Tilt - Hydra Lift Karrier

400A60-124

$3,019.80 Each
+
Add to wish list

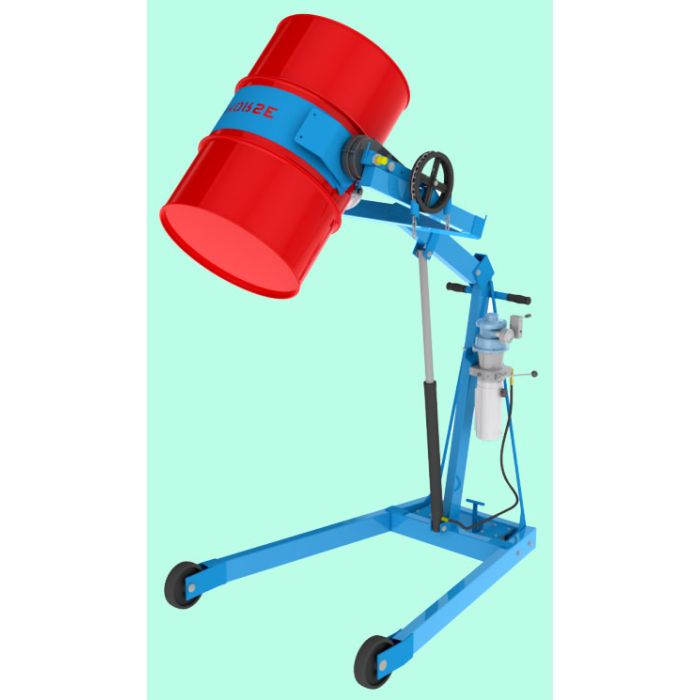

This MORSE® Hydra Lift Karrier™ has Manual Tilt and Air Power Lift. The power lift option eliminates the manual effort to lift the drum. This model has a vane type air motor lift. The drum can be lifted up to 72 inches. The optional filter, regulator, and lubricators are available. The hand crank tilt control is on this model. It allows the drum to be rotated 360° either direction, holding the drum at any angle desired.

All welded steel frame rolls easily on two, 8 inch polyolefin wheels and two, 4 inch swivel casters, which are hidden under the base. It can be screwed into the plant floor if necessary.  The MORCinch™ feature is designed to automatically adjust for 22 inch to 23 1/2 inch diameter steel drums and plastic or fiber drum with available options below.

Options Available include: Drum diameter adapters for handling smaller drums, Bracket assembly (SKU 4556-P) for plastic and fiber drums, or the Rim Clamp assembly (SKU 4560-P) for handling plastic drums, and the MORStop™ Tilt-Brake which automatically stops and holds the tilt angle of the drum.

Spark-resistant and Stainless Steel models are available through special order.  Call our Customer Service Experts at 1.800.776.3786 for details.

  • Drum handler lifts and/or tilts drums
  • Eliminates manual effort
  • 800 lb. capacity/500 lb half drum capacity
  • Hand Crank Tilt
  • Dispensing Ht.: 60"
  • Fits 55 gallon steel drums

A half full drum will be unbalanced and bottom heavy so when you tilt it, the load shifts differently than if it were a full drum.

Reach Ht.:
44"
Dispensing Ht.:
72"
Motor Description:
Air
Tilt:
Hand Crank
Wt.:
329 lb
Length:
60"
Height :
55"
