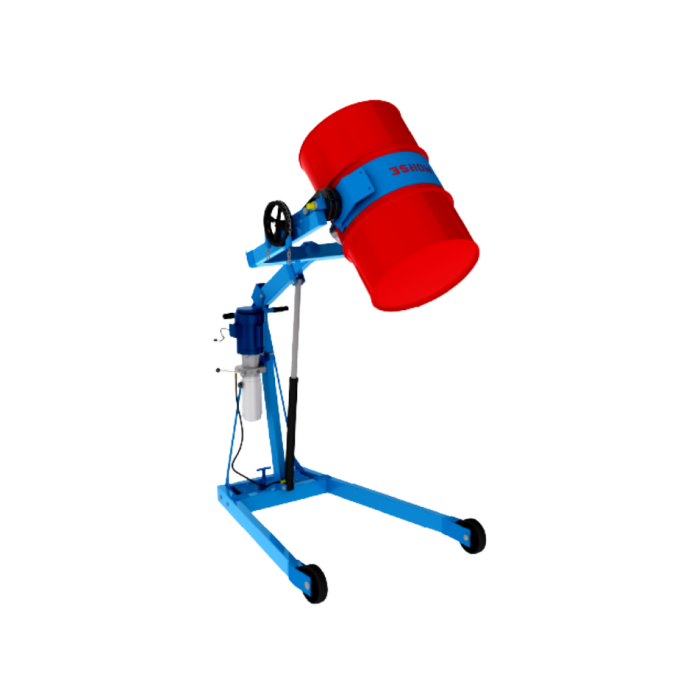

MORSE® Electric Power Lift - Manual Tilt - 96 Inch Pour Ht - Hydra Lift Drum Karrier

400A96-120
MORSE® Hydra Lift Karrier - Manual Tilt -Electric Lift

MORSE® Electric Power Lift - Manual Tilt - 96 Inch Pour Ht - Hydra Lift Drum Karrier

400A96-120

$3,055.15 Each
+
Add to wish list

This MORSE® Hydra Lift Karrier™ has Manual Tilt and Power Lift. The power lift option eliminates the manual effort to lift the drum. This model has a 115 VAC, 1HP, single phase TEFC electric motor, supplied with a 3-wire cord, plug and switch. The drum can be lifted up to 96 inches. The manual tilt is pull chain-wheel driven. It allows the drum to be rotated 360° either direction, holding the drum at any angle desired.

All welded steel frame rolls easily on two, 8 inch polyolefin wheels and two, 4 inch swivel casters, which are hidden under the base. It can be screwed into the plant floor if necessary. The MORCinch™ feature is designed to automatically adjust for 22 inch to 23 1/2 inch diameter steel drums and plastic or fiber drum with available options below.

Options Available include: Drum diameter adapters for handling smaller drums, Bracket assembly (SKU 4556-P) for plastic and fiber drums, or the Rim Clamp assembly (SKU 4560-P) for handling plastic drums, and the MORStop™ Tilt-Brake which automatically stops and holds the tilt angle of the drum.

Spark-resistant and Stainless Steel models are available through special order.  Call our Customer Service Experts at 1.800.776.3786 for details.

  • Drum handler lifts and/or tilts drums
  • Eliminates manual effort
  • 800 lb. capacity/500 lb half drum capacity
  • Chain Wheel Tilt
  • Dispensing Ht.: 96"
  • Fits 55 gallon steel drums

A half full drum will be unbalanced and bottom heavy so when you tilt it, the load shifts differently than if it were a full drum.

Reach Ht.:
49"
Dispensing Ht.:
96"
Motor Description:
Electric
Tilt:
Chain Wheel
Wt.:
384 lb
Length:
72 1/2"
Height :
69"
