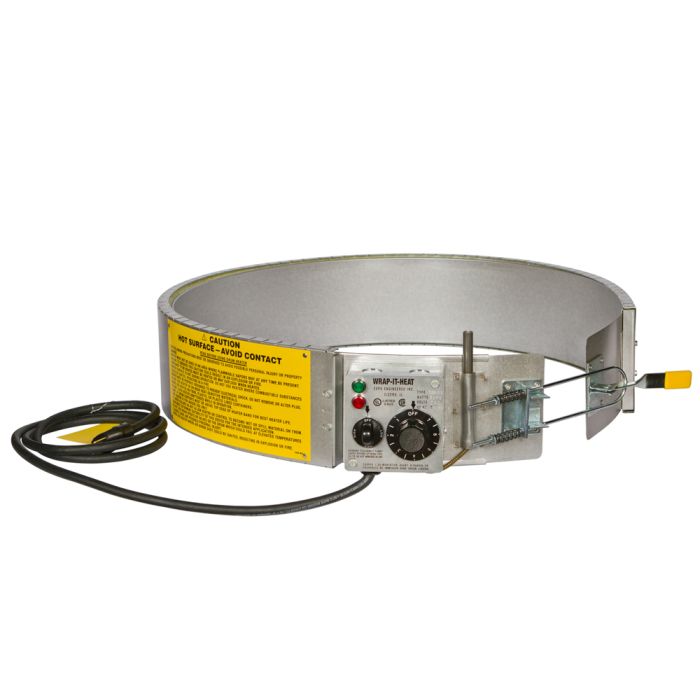

EXPO ™ Electric Drum Heater - Thermostat Control - For 55 Gallon Steel Drums

SKU
TRX55H240
$369.00 / each
Print PDF
+
-
  • Temp. Range: 200° - 400° F
  • Volts: 240
  • NEMA Plug: 6-15P

EXPO™ Electric Drum Heater, with thermostat control and three-heat switch, are designed for use on 55 gallon all metal drums containing materials with good heat receptivity. This unit has a thermostat range of 200° – 400° F and 240 V operating rating.

The thermostat control is numbered 1-7.  The three-heat switch allows for three wattage ranges per thermostat setting, the high setting is for the maximum watts (3000), the medium setting is for half the wattage (1500) and the low setting is for 750 watts.

Electric drum heater installs easily with a spring-loaded toggle clamp for a snug fit around the steel drum This heater has a NEMA 6-15P Plug. This heater is for indoor use only.

The heater is equipped with neon pilot lights. The green pilot light will glow as long as the heater is plugged in. The red pilot light will glow until the heater reaches the set temperature and will go on and off as the thermostat cycles.

  • UL Listed
  • CSA Certified
  • One year warranty

This heater is for use with steel drums that do not contain a removable plastic liner.

Electric drum heater is to be used to heat NON-FLAMMABLE, NON-COMBUSTIBLE materials only in a NON-HAZARDOUS area.

Caution:  Allowing liquid in a container to fall below the level of the heater will render the heater ineffective and could irreparably damage the baked on epoxy phenolic lining in lined steel drums and pails.

More Information
Location Monee, IL
Brand Expo Engineered Inc
Type Adjustable Thermostat
Fits Drums
Temp. Range High 400
Temp. Range Low 200
Volts 240V
Watts 3000W
Length 22 1/2"
Height 5 3/8"
Weight 15 lbs
Standards CSA Certified, UL Listed
Drum Size 55 Gallon
