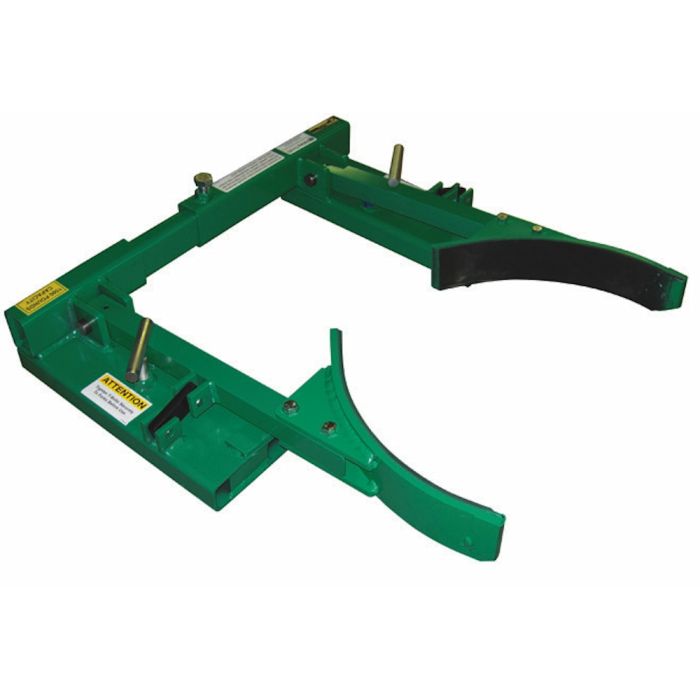

Drum Grabber With Rubber Lined Jaws - Auto Grip™

6145
Auto Grip™ Drum Grabber

Drum Grabber With Rubber Lined Jaws - Auto Grip™

6145

$739.70 Each
+
Add to wish list

Auto Grip® drum grabber fork lift attachment is equipped with standard jaws that are spring-and-cam actuated and grip with pressure equal to the weight of the drum. This unit is quick and easy to attach to the lift truck, allows a single operator to pick up, transport and unload empty or full drums up to 1500 lb.

Auto Grip™ drum grabber has rubber lined jaws for grabbing 30, 55 or 85 gallon steel and overpack drums (18 inch - 28 inch diameter). Secures to lift truck forks with heavy duty T-bolts. Spring-and-cam actuated jaws grip automatically as the drum is lifted and released when the drum is set down.

  • Adjusts to handle one 30, 55 or 85 gallon steel drum
  • Fork Mount
  • Capacity: 1500 lb

Drum grabber jaws are 3 inches wide x 15 inches long.

The auto grip adjusts by sliding apart, so there is a variable width between the forks of 13 inch to 25 inch. Usable fork tube size measures 1 5/8 inch x 5 5/8 inches wide and 16 3/4 inches long.

Capacity:
1500 lb
Description:
Spring and Cam actuated rubber lined jaws
Fits Drum:
30, 55 or 85 gallon (18" - 28" diameter)
Wt.:
103 lb
Length:
34"
Width:
33"
Height :
6"
