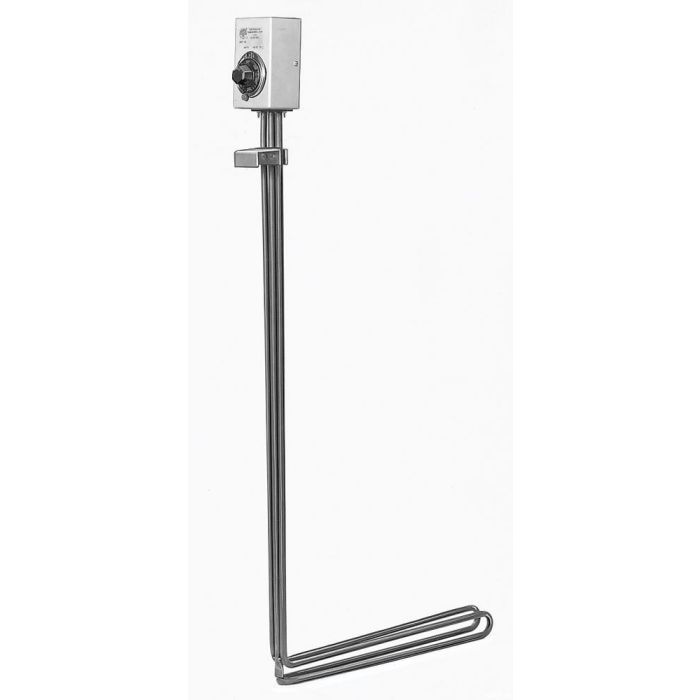

Bung Entering Immersion Heater - 240V Steel Sheath

SKU
TAT30006
$659.05 / each
Print PDF
+
-
  • For 55 gallon steel drum
  • 60 - 250° F thermostat with over-temperature cutout
  • Volts: 240
  • Watts: 4,000

Steel Immersion heater puts the heat right into the products for the most efficient heating. Only 8 inch of riser is heated, allowing liquid level to fluctuate without damaging the heater. Heater fits through 2 inch bung opening in steel 55 gallon drums.

The adjustable mounting bracket positions the heater away from the drum wall and above sludge buildup at the bottom of the drum. Pilot light indicates whether heater is cycled on or off. All heaters are single-phase and have NEMA 1 control housings.

  • Improve flow of viscous liquids
  • 60 - 250° F thermostat with over-temperature cutout

Note: No cord or plug is provided - consult your local electric code for the proper wiring techniques for the environment in which the heater will be used. Operating instructions and a wiring diagram are included with each heater.

More Information
Brand Tempco Electric Heater Corp
Type Adjustable Thermostat
Fits Drums
Temp. Range High 250
Temp. Range Low 60
Volts 240V
Watts 4000W
Length 19"
Height 36"
Weight 8 lbs
Standards NEC Compliant, NFPA Compliant
